Tutorial

The HyperFit method is fully described in Robotham & Obreschkow 2015. This page just gives some basic ideas behind the theory, and details of how this is implemented in Python.

The Theory

As detailed in the above link, we assume that our data is drawn from an N-1 dimensional hyperplane \(\mathcal{H}\), with some intrinsic, Gaussian scatter orthogonal to this plane \(\sigma_{\perp}\). We can always define a normal vector \(\boldsymbol{n}\) that goes from the origin to this plane.

If we then have a bunch of \(N\) measurements at locations \(\boldsymbol{x_{i}}\), each with it’s own covariance matrix \(\mathsf{\boldsymbol{C_{i}}}\), we can write the log likelihood of our data in terms of the vector \(\boldsymbol{n}\) as

\[\mathrm{ln}\mathcal{L} = \frac{1}{2}\sum_{i=1}^{N}\biggl[\mathrm{ln}\biggl(\sigma_{\perp} + \frac{\boldsymbol{n}^{T}\mathsf{\boldsymbol{C_{i}}}\boldsymbol{n}}{\boldsymbol{n}^{T}\boldsymbol{n}}\biggl) + \frac{(\boldsymbol{n}^{T}[\boldsymbol{x_{i}}-\boldsymbol{n}])^{2}}{\sigma^{2}_{\perp}\boldsymbol{n}^{T}\boldsymbol{n} + \boldsymbol{n}^{T}\mathsf{\boldsymbol{C_{i}}}\boldsymbol{n}}\biggl]\]

HyperFit finds the best-fitting plane for the data by maximising this log-likelihood as a function of the components of the normal vector and the intrinsic scatter. The same log-likelihood can be used to perform an MCMC over these same quantities.

However, for most intents and purposes, having the coordinates of the best-fitting plane in terms of the normal vector and orthogonal scatter is not that useful. What we can do is write our equation for the plane in Cartesian coordinates as \(\boldsymbol{m}^{T}\boldsymbol{x} + c = 0\), with some scatter in the vertical D direction \(\sigma_{D}\) (where vertical can be whichever coordinate axis we choose). I.e., if we are dealing with a simple 2D straight line, then \(\boldsymbol{x_{i}}=[x_{i},y_{i}]\) and \(\boldsymbol{m}=[m,-1]\). Given this description, we can convert our normal vectors to Cartesian coordinates using

\[ \begin{align}\begin{aligned}\boldsymbol{m} = -\boldsymbol{n}/n_{D}\\c = \boldsymbol{n}^{T}\boldsymbol{n}/n_{D}\\\sigma_{D} = \sigma_{\perp}(\boldsymbol{n}^{T}\boldsymbol{n})^{1/2}/n_{D}\end{aligned}\end{align} \]

HyperFit performs the necessary conversions between normal and Cartesian coordinates. Fitting ranges, best-fit parameters and MCMC chains are all returned in Cartesian coordinates, so you don’t need to worry about the coordinate transforms. However, if you do need to know the normal vectors or scatter in the orthogonal axis, these can be still accessed or computed through the class attributes or methods. See the :ref:API for more details.

The Method

The python package has a single main class LinFit. Optimization of the above likelihood is done using SciPy’s differential evolution algorithm, which is gradient free, fast and quite robust as long as the global minimum is within the user-provided bounds. Bounds are passed in in Cartesian coordinates; HyperFit then works out the corresponding maximum and minimum bounds within this space for the normal vector and for the orthogonal scatter. Fitting is then performed in terms of the normal vector, before the reverse coordinate transform is applied and the result returned to the user.

LinFit also contains two different MCMC methods, the excellent emcee and zeus samplers. Although quite different in how they work, these are both very robust and the choice is yours which one you use. In either case, the various functions in HyperFit have been vectorised and both algorithms have automated convergence checks, which means that you can usually get a fully converged set of samples in less than a couple of minutes!

So, let’s have a quick look at a toy example. Some astrophysical examples can be found in the Examples page.

A simple best-fit

Let’s start by generating some noisy 2D data with variable errors and correlation coefficients. Our true relationship is given by \(y = 2x + 1\) with an intrinsic Gaussian scatter in the y-direction of 0.2.

import numpy as np

# Some true x and y-values with intrinsic scatter
ndata = 100
x_true = np.random.rand(ndata)
y_true = np.random.normal(2.0 * x_true + 1.0, 0.2)

# Some correlated measurements of the x and y values with different errors and correlation coefficients
x_err, y_err, corr_xy = (
    0.05 * np.random.rand(ndata) + 0.025,
    0.05 * np.random.rand(ndata) + 0.025,
    2.0 * (np.random.rand(ndata) - 0.5),
)
data, cov = np.empty((2, ndata)), np.empty((2, 2, ndata))
for i, (x, y, ex, ey, rho_xy) in enumerate(zip(x_true, y_true, x_err, y_err, corr_xy)):
    cov[:, :, i] = np.array([[ex ** 2, ex * ey * rho_xy], [ex * ey * rho_xy, ey ** 2]])
    data[:, i] = np.random.multivariate_normal([x, y], cov[:, :, i])

# Some weights between 0.5 and 1.0
weights = 0.5 * np.random.rand(ndata) + 0.5

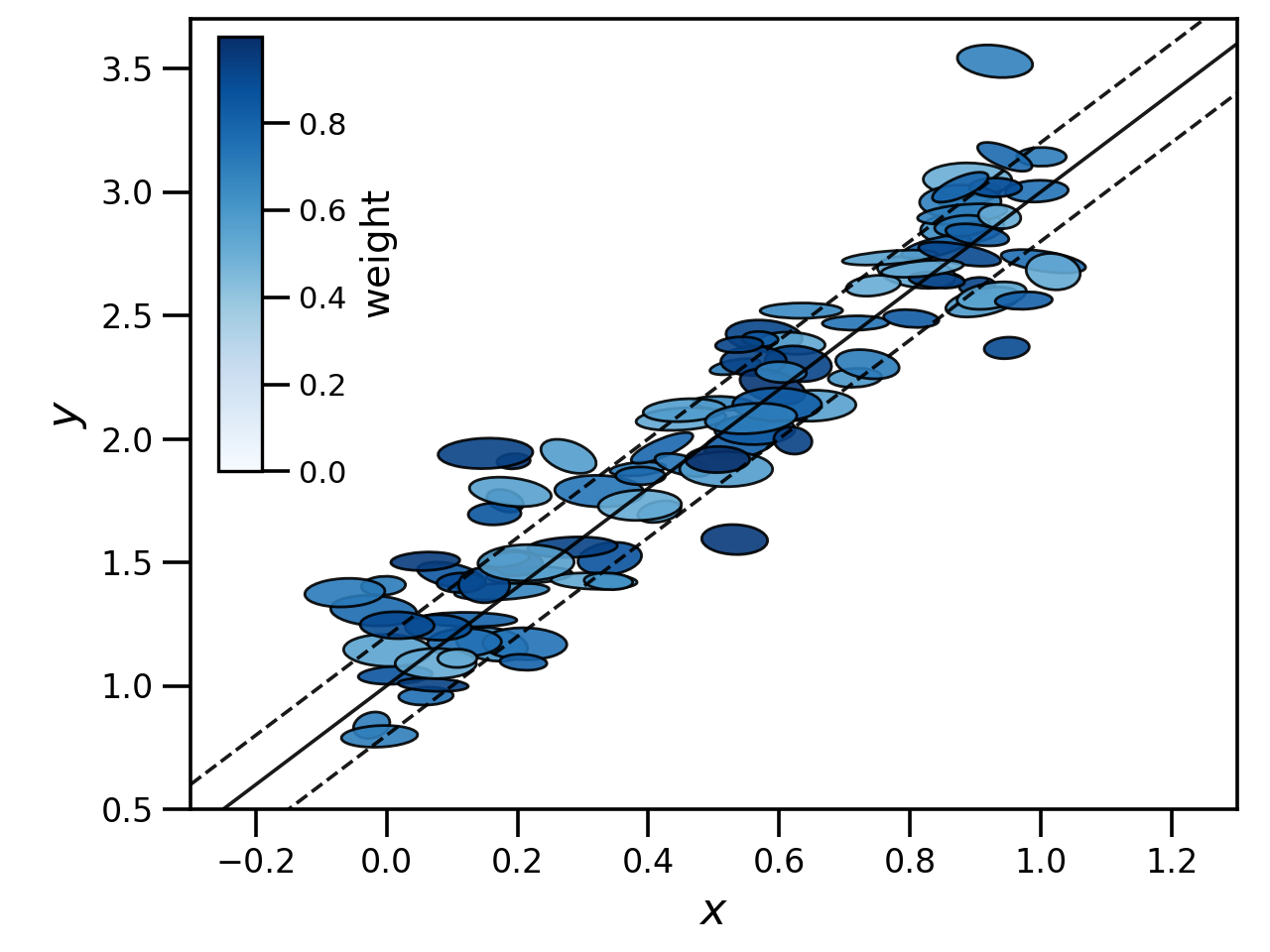

The resulting data looks something like below, where the ellipse encapsulates the \(1\sigma\) error bounds for each data point and colour/opacity represents weight - bluer, more opaque points have weights closer to one. Our input true relationship is given by the solid line, with the intrinsic scatter covered by the two dashed lines.

_images/ExampleData.png

If we want to find the best fit relationship for our data we can do this by first creating a LinFit object and passing it our data, then calling the optimize function with some suitable bounds:

from hyperfit.linfit import LinFit

hf = LinFit(data, cov, weights=weights)

bounds = ((-5.0, 5.0), (-10.0, 10.0), (1.0e-5, 5.0))
print(hf.optimize(bounds, verbose=False))

which takes just a couple of seconds for this data on my laptop and returns

(array([2.04612946, 1.02127379]), 0.21484373891291883, 129.95351565376387)

The first argument in the return tuple is an array containing the best fit parameters of the plane - the constant term \(c\) is always given last. The second argument is the intrinsic scatter in the vertical direction. As we did not specify a vertical axis this was set to the default, the last coordinate axis of the data vector, in this case \(y\). The third return argument is the log-likelihood at the best-fit.

It is important that the bounds given as input to the optimize function encapsulate the best-fit. The differential-evolution algorithm is pretty good at identifying the global minimum, but only searches within the bounds provided.

An MCMC

Comparing the results from our fit to the input parameters, we can see that HyperFit has recovered these quite well. In order to determine how well, we can obtain error estimates our the best-fit parameters by running a full MCMC chain

# Using emcee
mcmc_samples, mcmc_lnlike = hf.emcee(bounds, verbose=False)

# Or using zeus
mcmc_samples, mcmc_lnlike = hf.zeus(bounds, verbose=False)

Which, for this data, takes me about 5-10 and 10-20 seconds to finish on my laptop for emcee and zeus respectively. The results of the two are consistent. Both the emcee and zeus calls automatically check for convergence, stopping when some reasonable defaults are reached, and return chains with the burn-in removed. The default convergence criterion and burn-in can be modified with optional keyword arguments.

In both cases the bounds are used to set the range of the flat priors, a call to optimize is used to obtain the starting points and the code returns a list of samples and the corresponding log-likelihood. The last two columns in mcmc_samples are the constant intercept \(c\), followed by the vertical intrinsic scatter.

We can take the mean and standard deviation of these as our quoted results, and we’ll see that we recover the input parameters within one standard deviation

print(np.mean(mcmc_samples, axis=1), np.std(mcmc_samples, axis=1))
[2.04246704 1.02406434 0.2199428 ] [0.09377653 0.05470191 0.02383074]

Or we can do something more sophisticated, and plot contours from our samples (I’d recommend the excellent ChainConsumer package):

from chainconsumer import ChainConsumer

c = ChainConsumer()
c.add_chain(mcmc_samples.T, parameters=[r"$m$", r"$c$", r"$\sigma_{y}$"])
c.plotter.plot(truth=[2.0, 1.0, 0.2], display=True)
_images/ExampleContour.png

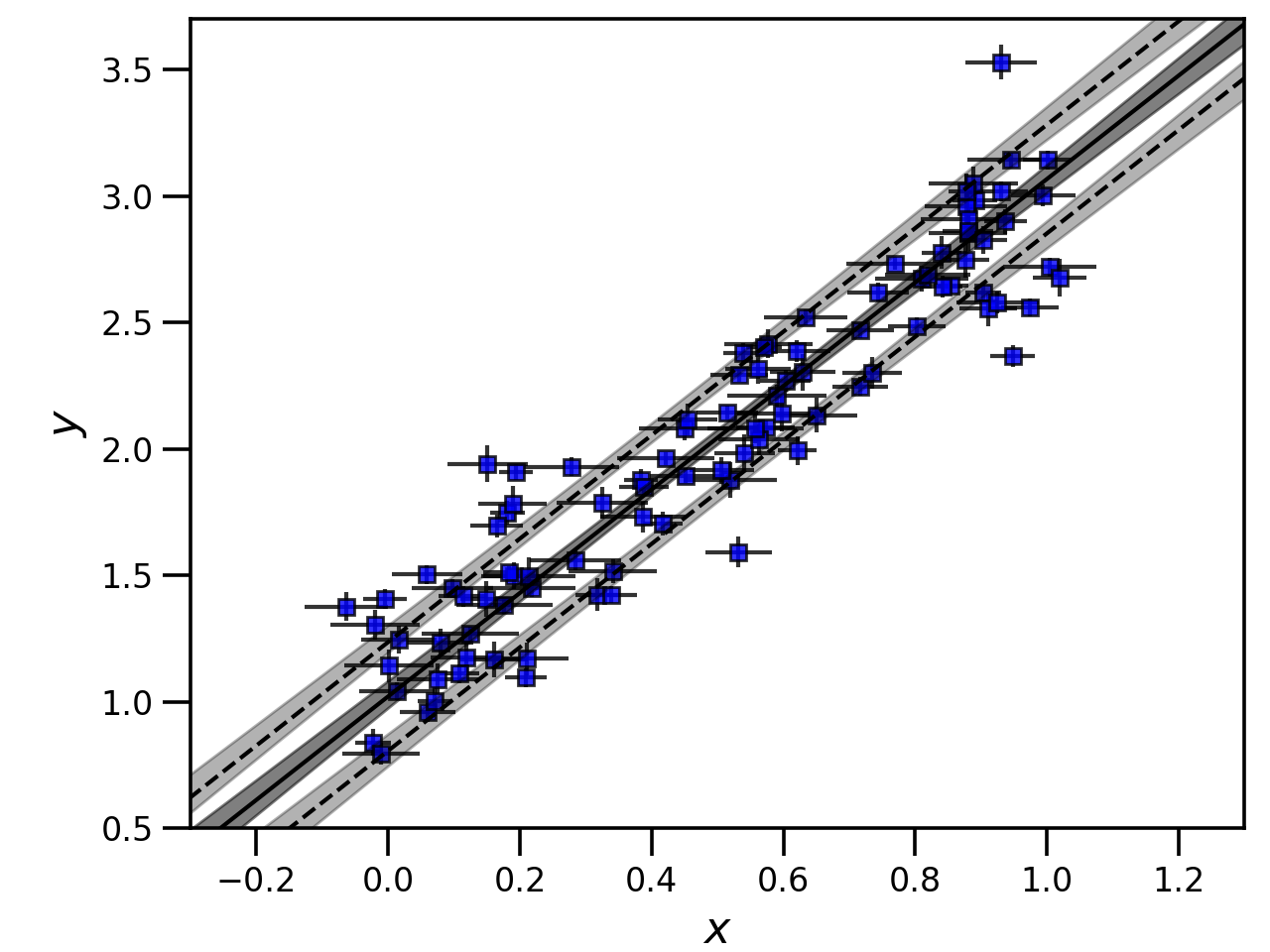

Note that because a call to emcee or zeus also calls optimize, we also have access to the best-fit point via LinFit.coords and LinFit.vert_scat. Using these and a bit of plotting know-how, we can make a plot demonstrating the best-fit and 68% confidence interval for the line plus intrinsic scatter.

import matplotlib.pyplot as plt

xvals = np.linspace(-1.0, 1.5, 1000)
y_bestfit = np.outer(xvals, hf.coords[0]) + hf.coords[1]
y_chain = np.outer(xvals, mcmc_samples[0]) + mcmc_samples[1]
y_upper = np.outer(xvals, mcmc_samples[0]) + mcmc_samples[1] + mcmc_samples[2]
y_lower = np.outer(xvals, mcmc_samples[0]) + mcmc_samples[1] - mcmc_samples[2]
y_chain_quantiles = np.quantile(y_chain, [0.1587, 0.8414], axis=1)
y_upper_quantiles = np.quantile(y_upper, [0.1587, 0.8414], axis=1)
y_lower_quantiles = np.quantile(y_lower, [0.1587, 0.8414], axis=1)

fig = plt.figure()
ax = fig.add_axes([0.15, 0.13, 0.83, 0.85])
ax.errorbar(data[0], data[1], xerr=x_err, yerr=y_err, c="k", mfc="b", marker="s", ls="None", alpha=0.8)
ax.fill_between(xvals, y_chain_quantiles[0], y_chain_quantiles[1], color="k", alpha=0.5)
ax.fill_between(xvals, y_upper_quantiles[0], y_upper_quantiles[1], color="k", alpha=0.3)
ax.fill_between(xvals, y_lower_quantiles[0], y_lower_quantiles[1], color="k", alpha=0.3)
ax.plot(xvals, y_bestfit, ls="-", c="k")
ax.plot(xvals, y_bestfit + hf.vert_scat, ls="--", c="k")
ax.plot(xvals, y_bestfit - hf.vert_scat, ls="--", c="k")
ax.set_xlabel(r"$x$", fontsize=16)
ax.set_ylabel(r"$y$", fontsize=16)
ax.set_xlim(-0.3, 1.3)
ax.set_ylim(0.5, 3.7)
plt.show()
_images/ExampleFit.png

A note on normal coordinates

In some cases, you may also want to know the best-fitting parameters in the normal coordinates and the scatter normal to the plane. You can access these after a call to optimize using

print(hf.normal, hf.norm_scat)
[-0.39307045  0.19545521] 0.03974178631730934

You might also want to know these for each of the points in your MCMC chain and then compute the mean and standard deviation as above. You can do this using the compute_normal function.

normal_mcmc_samples = np.vstack(hf.compute_normal(coords=mcmc_samples[:-1], vert_scat=mcmc_samples[-1]))
print(np.mean(normal_mcmc_samples, axis=1), np.std(normal_mcmc_samples, axis=1))
[-0.40639308  0.2003893   0.09683359] [0.03135972 0.02406839 0.00999385]

Sigma offsets

Sometimes, we want to know how far each measurement is away from a line or plane given both the measurement error and intrinsic scatter. HyperFit includes a convenient function for this, LinFit.get_sigmas(), which returns the distance between the plane and data points in units of the standard deviation. This requires the normal coordinates and normal scatter. You can pass these in as arrays (i.e., to get the sigma offset for every data point for every sample in an MCMC chain).

print(hf.get_sigmas(normal=normal_mcmc_samples[:-1], norm_scat=normal_mcmc_samples[-1]))
[[0.60939063 0.84149233 0.78724786 ... 0.69551866 0.97657028 0.59229374]
 [0.10950662 0.07240107 0.0327657  ... 0.12048005 0.18407655 0.1421682 ]
 [0.04214844 0.13292766 0.08509194 ... 0.03604142 0.23460111 0.05434102]
 ...
 [0.42869884 0.68224901 0.63618007 ... 0.48224236 0.83776708 0.37758293]
 [0.78976172 0.58107896 0.58858145 ... 0.91624085 0.43015999 0.91603182]
 [1.38372406 1.64802965 1.56014184 ... 1.64449213 1.78225778 1.44113633]]

The result is an 2D array, N_data x N_samples in size.

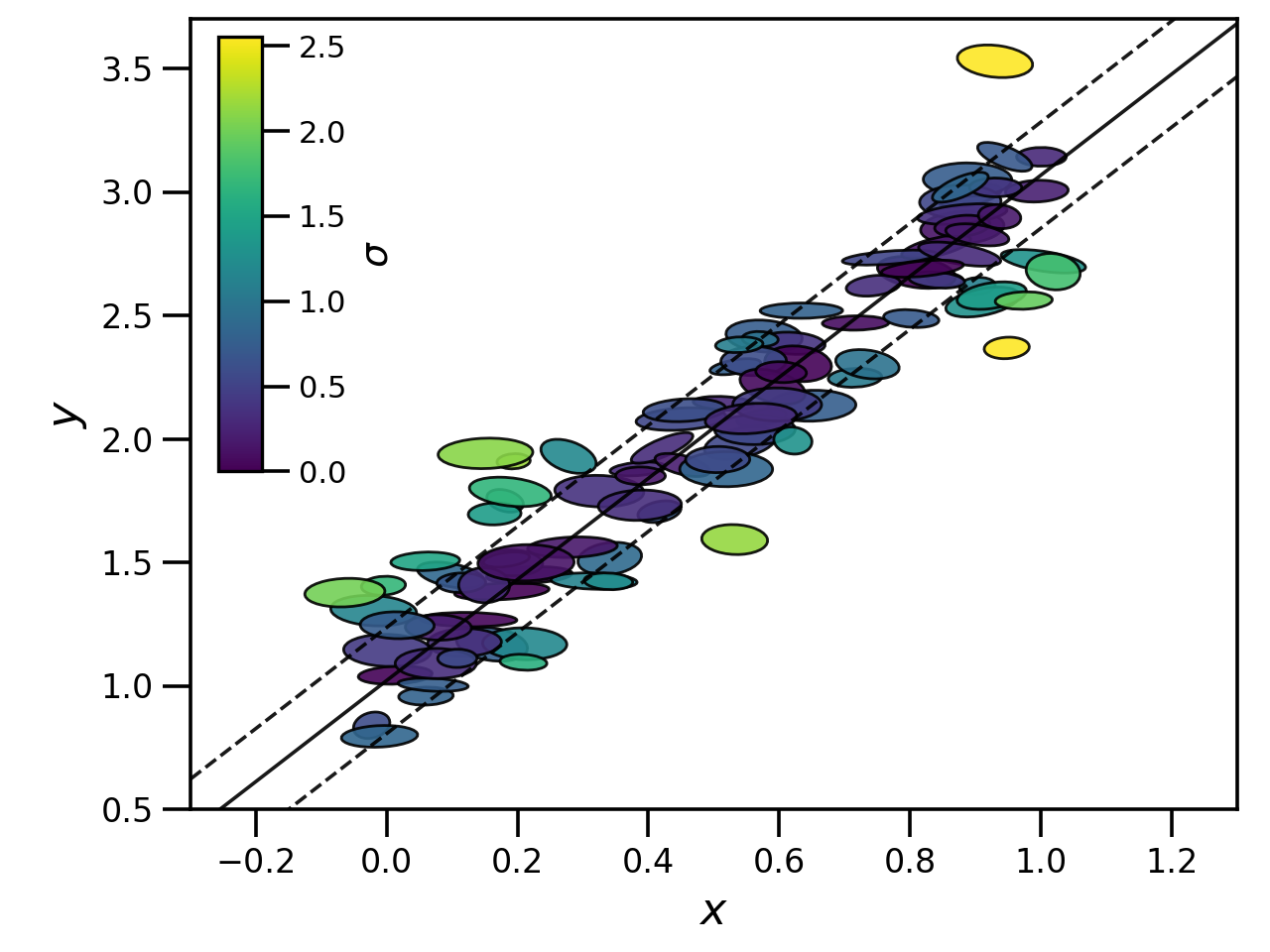

A more likely scenario is you only want to do this for the best fit. Following a call to optimize or either of the MCMC routines, the best-fit normal is already stored, so you can just call get_sigmas() with no arguments. It is hence simple to remake the first plot on this page with data colour coded by offset from the best-fitting plane.

import matplotlib.pyplot as plt
from matplotlib import cm, colors
from matplotlib.patches import Ellipse

sigmas = hf.get_sigmas()

xvals = np.linspace(-1.0, 1.5, 1000)
yvals = hf.coords[0] * xvals + hf.coords[1]

# Generate ellipses
ells = [
    Ellipse(
        xy=[data[0][i], data[1][i]],
        width=2.0 * x_err[i],
        height=2.0 * y_err[i],
        angle=np.rad2deg(np.arccos(corr_xy[i])),
    )
    for i in range(len(data[0]))
]

# Make the plot
fig = plt.figure()
ax = fig.add_axes([0.15, 0.15, 1.03, 0.83])
for i, e in enumerate(ells):
    ax.add_artist(e)
    e.set_color(cm.viridis(sigmas[i] / np.amax(sigmas)))
    e.set_edgecolor("k")
    e.set_alpha(0.9)
ax.plot(xvals, yvals, c="k", marker="None", ls="-", lw=1.3, alpha=0.9)
ax.plot(xvals, yvals - hf.vert_scat, c="k", marker="None", ls="--", lw=1.3, alpha=0.9)
ax.plot(xvals, yvals + hf.vert_scat, c="k", marker="None", ls="--", lw=1.3, alpha=0.9)
ax.set_xlabel(r"$x$", fontsize=16)
ax.set_ylabel(r"$y$", fontsize=16)
ax.set_xlim(-0.3, 1.3)
ax.set_ylim(0.5, 3.5)

# Add the colourbar
cb = fig.colorbar(
    cm.ScalarMappable(norm=colors.Normalize(vmin=0.0, vmax=np.amax(sigmas)), cmap=cm.viridis),
    ax=ax,
    shrink=0.55,
    aspect=10,
    anchor=(-7.1, 0.95),
)
cb.set_label(label=r"$\sigma$", fontsize=14)
_images/ExampleSigmas.png
